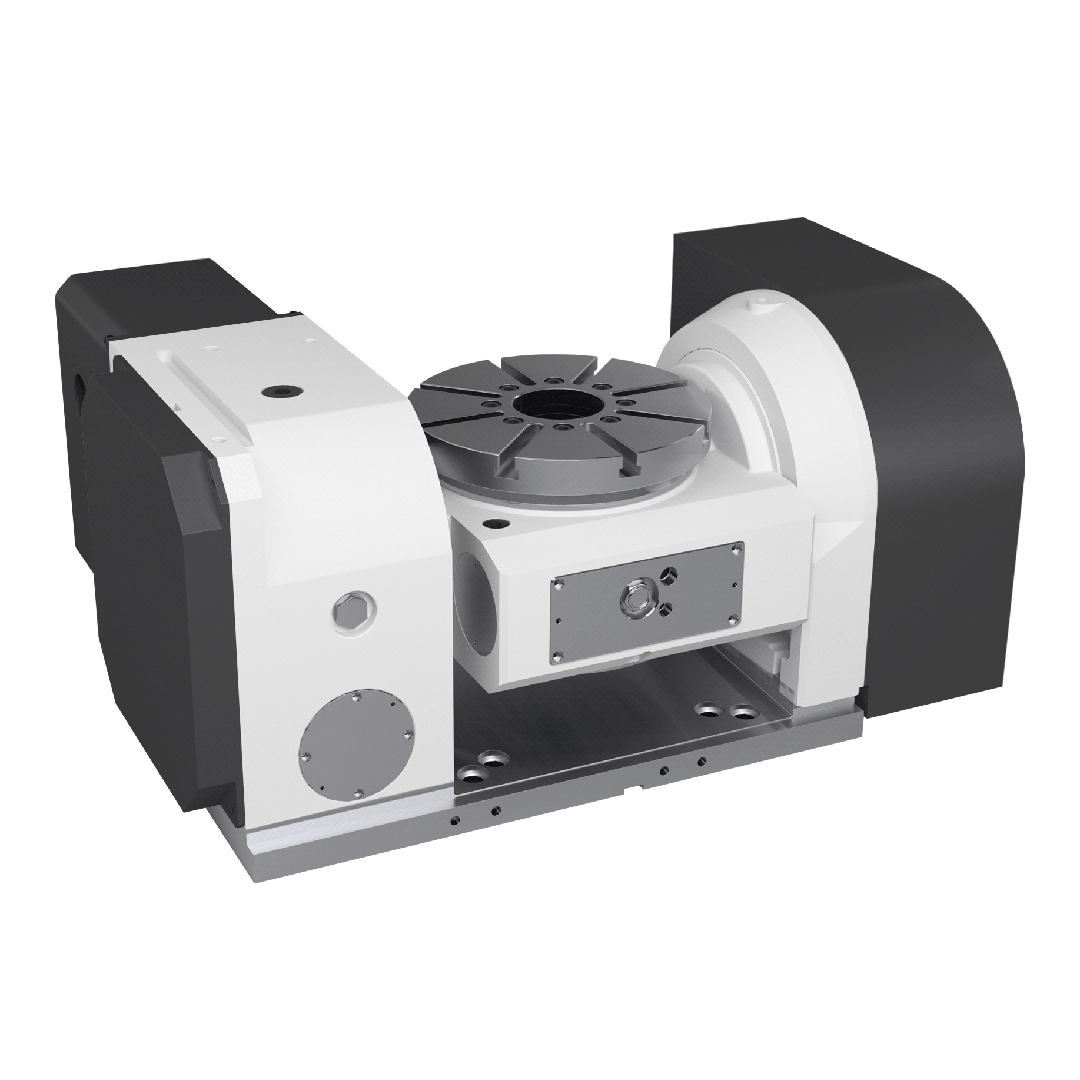

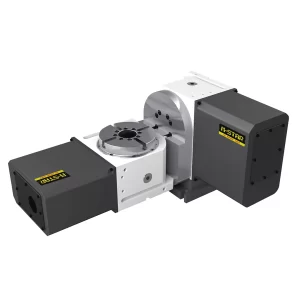

Tilting 5th-Axis

Model		Unit	FC-170	FC-200	FC-255	FC-320	FC-400
Table diameter		mm	ø170	ø200	ø255	ø320	ø400
Disk aperture		mm	55	55	80	110	110
Through-hole diameter		mm	45	45	50	110	110
Disk height		mm	255.5	255.5	297	361	345
T-groove of disk surface		mm	12H8	12H8	12H8	14H8	14H8
Positionning button		mm	14H7	14H7	18H7	18H7	18H7
Tile axis angle range		deg.	-45-110°	-45-110°	-45-110°	-45-110°	-45-110°
Rotation axis motor	FANUC	-	ßis4	ßis4	ßis8	ßis12	ßis12
Rotation axis motor	MITSUBISHI	-	HF105	HF105	HF104	HF224?	HF224?
Tilting axis motor	FANUC	-	ßis8	ßis8	ßis12	ßis22	ßis22
Tilting axis motor	MITSUBISHI	-	HF104	HF104	HF154	HF204	HF204
Speed reduction ratio	Rotation axis	-	1:90	1:90	1:120	1:120	1:120
Speed reduction ratio	Tilting axis	-	1:75	1:75	1:120	1:120	1:180
Max.table speed	Rotation axis	rpm	44	44	33.3	33.3	33.3
Max.table speed	Tilting axis	rpm	53	53	33.3	33.3	22.2
Min.increment		deg.	0.001°	0.001°	0.001°	0.001°	0.001°
Lndexing arccuracy	Rotation axis	sec.	20	20	15	15	15
Lndexing arccuracy	Tilting axis	sec.	20	20	20	20	30
Repeatability	Rotation axis	sec.	4	4	4	4	4
Repeatability	Tilting axis	sec.	4	4	8	8	8
Allowable work inertia	Rotation axis	Kg.cm.sec²	5.4	5.4	20.3	44.8	50
Allowable work inertia	Tilting axis	Kg.cm.sec³	5.4	5.4	20.3	44.8	100
Clamping Torque	Rotation axis	Kg-m	31	31	70	115	130
Clamping Torque	Tilting axis	Kg-m	31	31	70	115	200
Locking method	Rotation axis	kg/cm²	5（pneumatic）	5（pneumatic）	40（hydraulic）	40（hydraulic）	40（hydraulic）
Locking method	Tilting axis	kg/cm²	15（hydraulic）	15（hydraulic）	40（hydraulic）	40（hydraulic）	40（hydraulic）
Allowable cut force	Rotation axis	Kgf-m	18	18	55	80	90
Allowable cut force	Tilting axis	Kgf-m	18	18	55	80	170
Max.load	Horizontal	kg	75	75	100	150	200
Max.load	Vertical	kg	50	50	75	100	150
Weight(motor excluded)		kg	150	155	290	480	750
